| Size | Images | Module Name | Brand | Touch Panel | Aspect Ratio | Contrast Ratio | Tech Type | Resolution | Active Area(mm) | Luminance (nits) |
NTSC | Viewing Angle | Interface | ||
4.3"
 |
|
TSW043TN02-40NM02 | TEKSWO | no | 16:9 | 500 | TFT | 480*3(RGB)*272 | 95.04*53.856 | 250 | 50% | 50/70/70/70 | 40pin FPC,Parallel 24bit RGB | ||
|
4.3"
|
|
TSW043TN01-40NM03 | TEKSWO | no | 16:9 | 500 | TFT | 480*3(RGB)*272 | 95.04*53.856 | 450 | 50% | 50/70/70/70 | 40pin FPC,Parallel 24bit RGB | ||
|
4.3"
|
|
TSW043TN01-40NM02 | TEKSWO | no | 16:9 | 500 | TFT | 480*3(RGB)*272 | 95.04 x 53.856 | 300 | 50% | 50/70/70/70 | 40pin FPC,Parallel 24bit RGB | ||
|
4.3"
|
|
TSW043TN01-40NM01 | TEKSWO | no | 16:9 | 500 | TFT | 480*3(RGB)*272 | 95.04*53.856 | 250 | 50% | 50/70/70/70 | 40pin FPC,Parallel 24bit RGB | ||
|

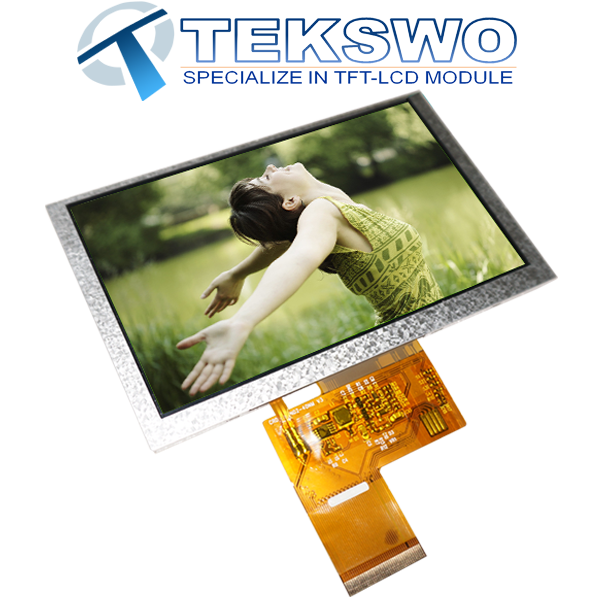

5"
|
|
TSW050TN02-40NM02 | TEKSWO | no | 16:9 | 500 | TFT | 800*3(RGB)*480 | 108*64.8 | 500 | 50% | 50/70/70/70 | 40pin FPC,Parallel 24bit RGB | ||
|
5"
|
|
TSW050TN02-40NM01 | TEKSWO | no | 16:9 | 500 | TFT | 800*3(RGB)*480 | 108*64.8 | 200 | 50% | 50/70/70/70 | 40pin FPC,Parallel 24bit RGB | ||
|

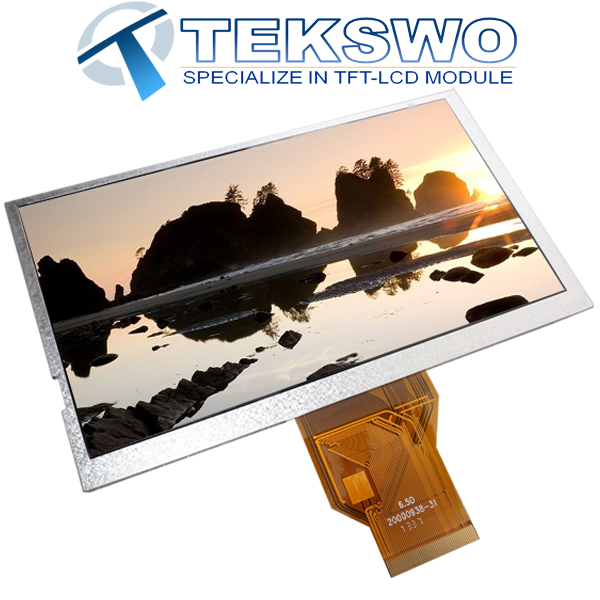

6.5"
|
|
TSW065TN01-50NM05 | TEKSWO | no | 16:9 | 500 | TFT | 800*3(RGB)*480 | 143.4*76.704 | 450 | 50% | 50/70/70/70 | 50pin FPC, Parallel 24bit RGB | ||
|
6.5"
|
|
TSW065TN01-50NM04 | TEKSWO | no | 16:9 | 500 | TFT | 800*3(RGB)*480 | 143.4*76.704 | 100 | 50% | 50/70/70/70 | 50pin FPC, Parallel 24bit RGB | ||
|
6.5"
|
|
TSW065TN01-50NM03 | TEKSWO | no | 16:9 | 500 | TFT | 800*3(RGB)*480 | 143.4*76.704 | 200 | 50% | 50/70/70/70 | 50pin FPC, Parallel 24bit RGB | ||
|
6.5"
|
|
TSW065TN01-50NM02 | TEKSWO | no | 16:9 | 500 | TFT | 800*3(RGB)*480 | 143.4*76.704 | 450 | 50% | 50/70/70/70 | 50pin FPC, Parallel 24bit RGB | ||
|
6.5"
|
|
TSW065TN01-50NM01 V1 | TEKSWO | no | 16:9 | 500 | TFT | 800*3(RGB)*480 | 143.4*76.704 | 250 | 50% | 50/70/70/70 | 50pin FPC, Parallel 24bit RGB | ||
|
6.5"
|
|
TSW065TN01-50NM01 | TEKSWO | no | 16:9 | 500 | TFT | 800*3(RGB)*480 | 143.4*76.704 | 200 | 50% | 50/70/70/70 | 50pin FPC, Parallel 24bit RGB | ||
