Screen Size
Brand
Aspect Ratio
Resolution
Interface
Total 3 Records
Size Images Module Name Brand Touch Panel Aspect Ratio Contrast Ratio Tech Type Resolution Active Area(mm) Luminance
(nits)
NTSC Viewing Angle Interface
10.1"


Download The Pdf

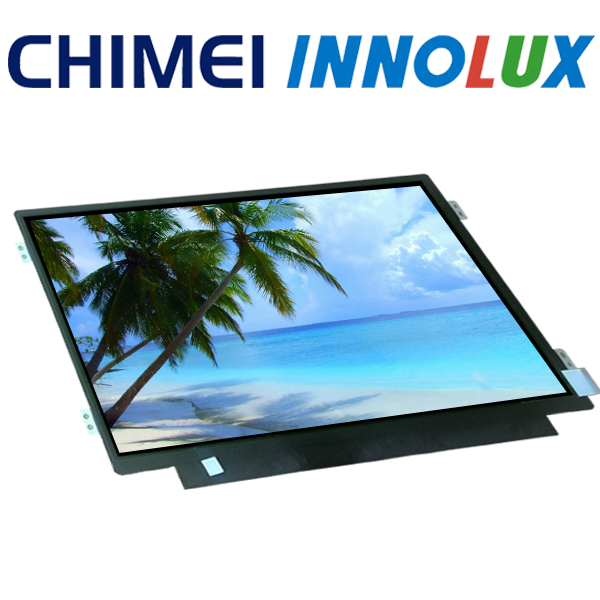

EJ101IA-01G EJ101IA-01G CHIMEI-INNOLUX Optional 16:10 800:1 TFT 1280*3(RGB)*800 216.96 x 135.60 350 50% 85/85/85/85 40pin connector ,LVDS
10.1"


Download The Pdf

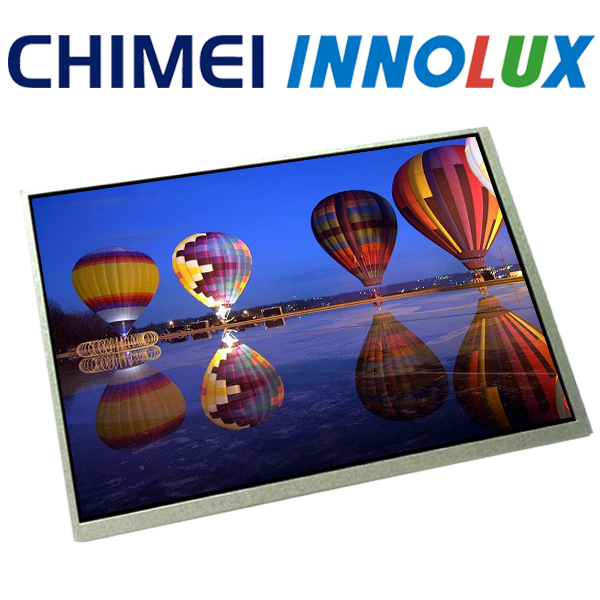

HJ101NA-02C HJ101NA-02C CHIMEI-INNOLUX Optional 16:10 700:1 TFT 1280*3(RGB)*800 216.96 x 135.60 250 -- 75/75/75/75 40pin connector ,LVDS
10.1"


Download The Pdf

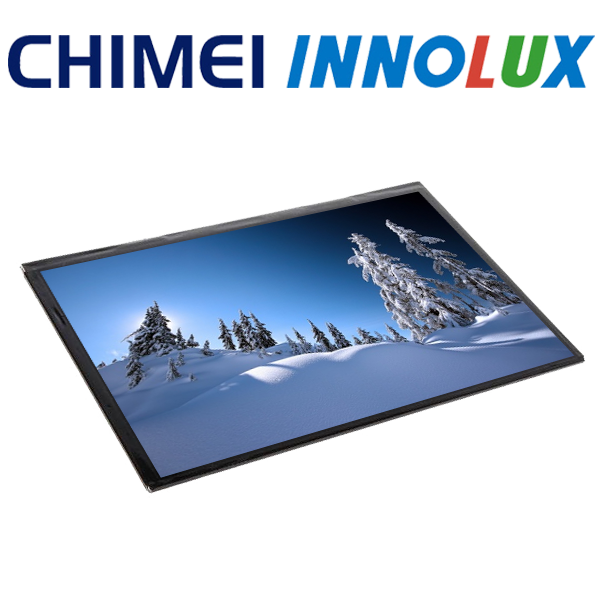

N101BGE-L31 N101BGE-L31 CHIMEI-INNOLUX Optional 16:9 500:1 TFT 1366*3(RGB)*768 222.52 x 125.11 200 45% 20/45/45/45 40pin TTL (1 ch, 6-bit)
Total 3 Records
