N101BGE-L31
MOQ: ≥ 10pcs
Lead Time: 3 working days FCA Hongkong after receiving PO
Payment: T/T, Paypal, West Union
Warranty: 1year
Lead Time: 3 working days FCA Hongkong after receiving PO
Payment: T/T, Paypal, West Union
Warranty: 1year

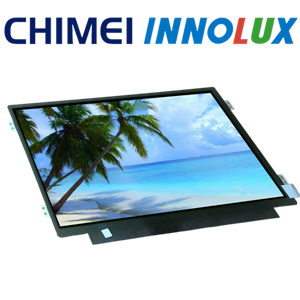

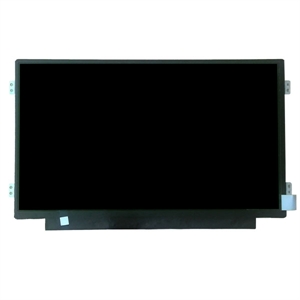

Chi mei InnoLux TFT LCD panel display N101BGE-L31 module parameter:
|
Product Name: |
N101BGE-L31 |
|
Touch Panel: |
Optional |
|
Screen Size: |
10.1" |
|
Aspect Ratio: |
16:9 |
|
Display Mode: |
Transmissive |
|
Resolution: |
1366 X 3(RGB) X 768 |
|
PPI ( Pixel per inch ): |
155 |
|

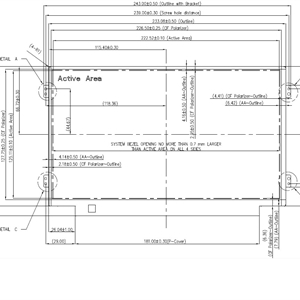

Module/Panel Size(mm): |
243.0 x 146.56 x 3.29 |
|
Active Area(mm): |
222.52 x 125.11 |
|
Dot Pitch(mm): |
- |
|
Surface Treatment: |
Hard Coating(3H) |
|
Viewing Angle (Tpy.)θT/θB/θL/θR: |
20/45/45/45 |
|
Viewing direction: |
6 O'Clock |
|
NTSC: |
45% |
|
Luminance(nits): |
200 |
|
Contrast Ratio: |
500:1 |
|
Response Time(ms): |
3/7 (Typ.)(Tr/Td) |
|
Consumption (W)- Total: |
2.40 |
|
Color Depth: |
262K(6-bit) |
|
Weight (g): |
160.0 |
|
Interface: |
40pin Connector TTL(1 ch,6-bit) |
|
Operation Temperature( ℃): |
-0~50 |
|
Storage Temperature (℃): |
-20~60 |
|
Lamp Type: |
White LED backlight Display |
Wholesale InnoLux N101BGE-L31 display TFT-LCD from China
Searching InnoLux N101BGE-L31 display tft-lcd at a reasonable price? This page includes a rich selection of InnoLux N101BGE-L31 display tft-lcd! We’ve also got InnoLux N101BGE-L31 display panel. You can shop wholesale InnoLux N101BGE-L31 display tft-lcd panel from Chinese InnoLux N101BGE-L31 display tft-lcd wholesalers with high quality and low prices. Our online wholesalers often offer special discounts and sales like InnoLux N101BGE-L31 display tft-lcd. If you want quotation or more details, please send Email to:
