AT043TN24 V.7
MOQ: ≥ 10pcs
Lead Time: 3 working days FOB Hongkong after receiving payment
Payment: T/T, Paypal, West Union
Warranty: 1 year

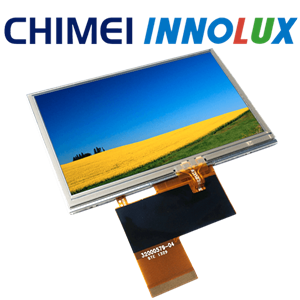

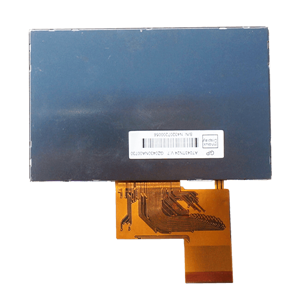

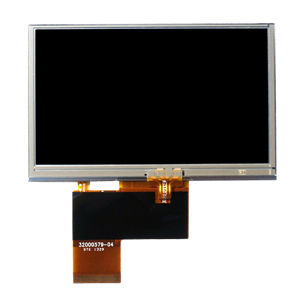

Chimei Innolux TFT LCD panel display AT043TN24 V.7 module parameter:
|
Display Name: |
AT043TN24 V.7 |
|
Touch Panel: |
Yes |
|
Screen Size: |
4.3" |
|
Aspect Ratio: |
16:9 |
|
Display Mode: |
Transmissive |
|
Resolution: |
480X3(RGB)X272 |
|
PPI ( Pixel per inch ): |
128 |
|

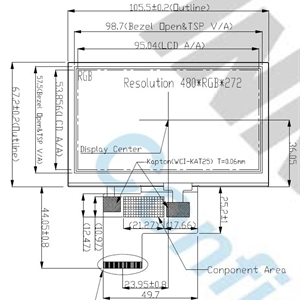

Module/Panel Size(mm): |
105.5 x 67.2 x 4.05 |
|
Active Area(mm): |
95.04 x 53.856 |
|
Dot Pitch(mm): |
0.066(W) X 0.198(H) |
|
Surface Treatment: |
Anti-Glare |
|
Viewing Angle (Tpy.)θT/θB/θL/θR: |
50/70/70/70 |
|
Viewing direction: |
6 O'Clock |
|
NTSC: |
50% |
|
Luminance(nits): |
400 |
|
Contrast Ratio: |
500 |
|
Response Time(ms): |
25 |
|
Consumption (W)- Panel: |
0.056 |
|
Consumption (W)- Backlit: |
0.558 |
|
Panel Weight (g): |
58.0 |
|
Interface: |
40pin FPC,Parallel 24bit RGB |
|
Operation Temperature( ℃): |
-20~70 |
|
Storage Temperature (℃): |
-30~80 |
|
Lamp type: |
White LED backlight display |
Wholesale InnoLux at043tn24 display TFT-LCD from China
Searching InnoLux at043tn24 display tft-lcd at a reasonable price? This page includes a rich selection of InnoLux at043tn24 display tft-lcd! We’ve also got InnoLux at043tn24 display panel. You can shop wholesale InnoLux at043tn24 display tft-lcd panel from Chinese InnoLux at043tn24 display tft-lcd wholesalers with high quality and low prices. Our online wholesalers often offer special discounts and sales like InnoLux at043tn24 display tft-lcd. If you want quotation or more details, please send Email to: sales@tekswo-display.com or search by InnoLux at043tn24 display tft-lcd at the home page.
