ZJ090NA-03B
MOQ: ≥ 10pcs
Lead Time: 3 working days FOB Hongkong after receiving payment
Payment: T/T, Paypal, West Union
Warranty: 1 year

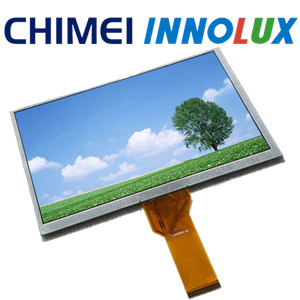

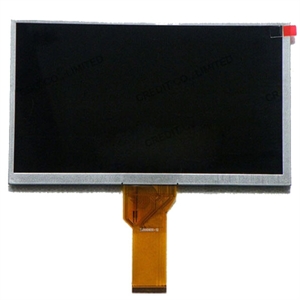

Chimei Innolux TFT LCD panel display ZJ090NA-03B module parameter:
|
Display Name: |
ZJ090NA-03B |
|
Touch Panel: |
Optional |
|
Screen Size: |
9.0" |
|
Aspect Ratio: |
16:9 |
|
Display Mode: |
Transmissive |
|
Screen Resolution: |
800X3(RGB)X480 |
|
PPI ( Pixel per inch ): |
104 |
|

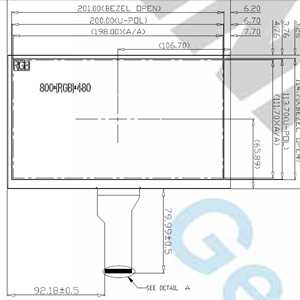

Module/Panel Size(mm): |
211.1 x 126.5 x 5.9 |
|
Active Area(mm): |
198.0 x 111.696 |
|
Dot Pitch(mm): |
0.0825 x 0.2327 |
|
Surface Treatment: |
Anti-Glare |
|
Viewing Angle (Tpy.)θT/θB/θL/θR: |
50/70/70/70 |
|
Viewing direction: |
6 O'Clock |
|
NTSC: |
50% |
|
Luminance(nits): |
500 |
|
Contrast Ratio: |
500:1 |
|
Response Time(ms): |
10/15 (Typ.)(Tr/Td) |
|
Consumption (W)- Panel: |
0.36 |
|
Consumption (W)- Backlight: |
4.65 |
|
Panel Weight (g): |
262.0 |
|
Interface: |
50pin FPC,Parallel RGB(1 ch, 8-bit) |
|
Operation Temperature( ℃): |
-20~80 |
|
Storage Temperature (℃): |
-30~80 |
|
Lamp type: |
White LED backlight Display |
Wholesale InnoLux ZJ090NA-03B display TFT-LCD from China
Searching InnoLux ZJ090NA-03B display tft-lcd at a reasonable price? This page includes a rich selection of InnoLux ZJ090NA-03B display tft-lcd! We’ve also got InnoLux ZJ090NA-03B display panel. You can shop wholesale InnoLux ZJ090NA-03B display tft-lcd panel from Chinese InnoLux ZJ090NA-03B display tft-lcd wholesalers with high quality and low prices. Our online wholesalers often offer special discounts and sales like InnoLux ZJ090NA-03B display tft-lcd. If you want quotation or more details, please send Email to:
