7.0" TFT LCD Display

AT070TN83 V.1

  • Download
  • back
MOQ: ≥ 10pcs
Lead Time: 3 working days FOB Hongkong after receiving PO
Payment: T/T, Paypal, West Union
Warranty: 1year

Product Name:
AT070TN83 V.1
Touch Panel:
Optional
Screen Size:
7"
Aspect Ratio:
15:9
Display Mode:
Transmissive
Resolution:
800X3(RGB)X480
PPI ( Pixel per inch ):
133

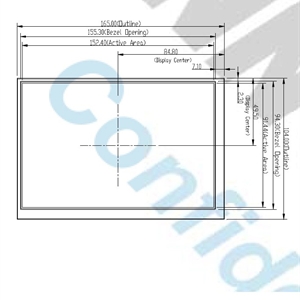

Module/Panel Size(mm):
165 x 104 x 4.4
Active Area(mm):
152.4 x 91.44
Dot Pitch(mm):
0.0635(W) X 0.1905(H)
Surface Treatment:
Anti-Glare
Viewing Angle (Tpy.)θT/θB/θL/θR:
50/70/70/70
Viewing direction:
6 O'Clock
NTSC:
50%
Luminance(nits):
300
Contrast Ratio:
500
Response Time(ms):
25
Consumption (W)- Panel:
0.825
Consumption (W)- Backlight:
2.50
Weight (g):
130.0
Interface:
40pin,18bitRGB connector
Operation Temperature( ℃):
-20~70
Storage Temperature (℃):
-30~80
Lamp Type:

White LED backlight Display

Wholesale InnoLux AT070TN83 V.1 display TFT-LCD from China

       Searching InnoLux AT070TN83 V.1 display tft-lcd at a reasonable price? This page includes a rich selection of InnoLux AT070TN83 V.1 display tft-lcd! We’ve also got InnoLux AT070TN83 V.1 display panel. You can shop wholesale InnoLux AT070TN83 V.1 display tft-lcd panel from Chinese InnoLux AT070TN83 V.1 display tft-lcd wholesalers with high quality and low prices. Our online wholesalers often offer special discounts and sales like InnoLux AT070TN83 V.1 display tft-lcd. If you want quotation or more details, please send Email to:
