G057VGE-T01
MOQ: ≥ 10pcs
Lead Time: 3 working days FCA Hongkong after receiving PO
Payment: T/T, Paypal, West Union
Warranty: 1year
Lead Time: 3 working days FCA Hongkong after receiving PO
Payment: T/T, Paypal, West Union
Warranty: 1year

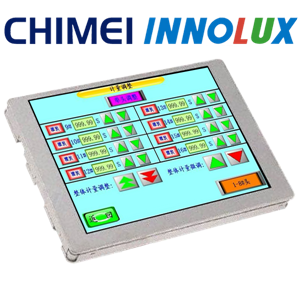

Chi mei InnoLux TFT LCD panel display G057VGE-T01 module parameter:
|
Product Name: |
G057VGE-T01 |
|
Touch Panel: |
Optional |
|
Screen Size: |
5.7" |
|
Aspect Ratio: |
4:3 |
|
Display Mode: |
Transmissive |
|
Resolution: |
640X3(RGB)X480 |
|
PPI ( Pixel per inch ): |
141 |
|

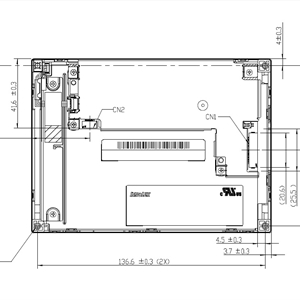

Module/Panel Size(mm): |
144.0 x 104.6 x 12.3 |
|
Active Area(mm): |
115.2 x 86.4 |
|
Dot Pitch(mm): |
- |
|
Surface Treatment: |
Anti-Glare |
|
Viewing Angle (Tpy.)θT/θB/θL/θR: |
70/70/80/80 |
|
Viewing direction: |
6 O'Clock |
|
NTSC: |
-- |
|
Luminance(nits): |
450 |
|
Contrast Ratio: |
800:1 |
|
Response Time(ms): |
15/35 (Typ.)(Tr/Td) |
|
Consumption (W)- Total: |
3.5 |
|
Color Depth: |
262K/16.2M |
|
Weight (g): |
155.0 |
|
Interface: |
33pin Connector,TTL(1 ch,6-bit) |
|
Operation Temperature( ℃): |
-30~85 |
|
Storage Temperature (℃): |
-30~85 |
|
Lamp Type: |
White LED backlight Display |
Wholesale InnoLux G057VGE-T01 display TFT-LCD from China
Searching InnoLux G057VGE-T01 display tft-lcd at a reasonable price? This page includes a rich selection of InnoLux G057VGE-T01 display tft-lcd! We’ve also got InnoLux G057VGE-T01 display panel. You can shop wholesale InnoLux G057VGE-T01 display tft-lcd panel from Chinese InnoLux G057VGE-T01 display tft-lcd wholesalers with high quality and low prices. Our online wholesalers often offer special discounts and sales like InnoLux G057VGE-T01 display tft-lcd. If you want quotation or more details, please send Email to:
