ZJ070NA-01P
MOQ: ≥ 10pcs
Lead Time: 3 working days FCA Hongkong after receiving PO
Payment: T/T, Paypal, West Union
Warranty: 1year
Lead Time: 3 working days FCA Hongkong after receiving PO
Payment: T/T, Paypal, West Union
Warranty: 1year

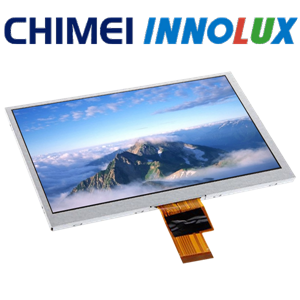

Chi mei InnoLux TFT LCD panel display ZJ070NA-01P module parameter:
|
Product Name: |
ZJ070NA-01P |
|
Touch Panel: |
Optional |
|
Screen Size: |
7.0" |
|
Aspect Ratio: |
17:10 |
|
Display Mode: |
Transmissive |
|
Resolution: |
1024X3(RGB)X600 |
|
PPI ( Pixel per inch ): |
169 |
|
Module/Panel Size(mm): |
165.75 x 105.39 x 4.8 |
|
Active Area(mm): |
153.6 x 90.0 |
|
Dot Pitch(mm): |
- |
|
Surface Treatment: |
Glare(Haze 0%) |
|
Viewing Angle (Tpy.)θT/θB/θL/θR: |
70/75/75/75 |
|
Viewing direction: |
6 O'Clock |
|
NTSC: |
70% |
|
Luminance(nits): |
500 |
|
Contrast Ratio: |
700:1 |
|
Response Time(ms): |
10/15 (Typ.)(Tr/Td) |
|
Consumption (W)- Total: |
3.914 |
|
Color Depth: |
262K/16.7M |
|
Weight (g): |
-- |
|
Interface: |
40pin FPC,LVDS(1 ch,6/8-bit) |
|
Operation Temperature( ℃): |
-30~80 |
|
Storage Temperature (℃): |
-30~80 |
|
Lamp Type: |
White LED backlight Display |
Wholesale InnoLux ZJ070NA-01P display TFT-LCD from China
Searching InnoLux ZJ070NA-01P display tft-lcd at a reasonable price? This page includes a rich selection of InnoLux ZJ070NA-01P display tft-lcd! We’ve also got InnoLux ZJ070NA-01P display panel. You can shop wholesale InnoLux ZJ070NA-01P display tft-lcd panel from Chinese InnoLux ZJ070NA-01P display tft-lcd wholesalers with high quality and low prices. Our online wholesalers often offer special discounts and sales like InnoLux ZJ070NA-01P display tft-lcd. If you want quotation or more details, please send Email to:
