AT070TN94
MOQ: ≥ 10 pcs
Lead Time: 3 working days FOB Hongkong after receiving PO
Payment: T/T, Paypal, West Union
Warranty: 1 year

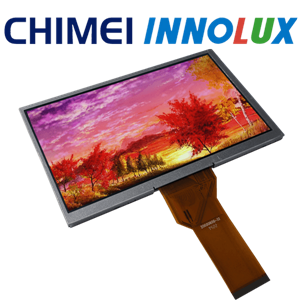

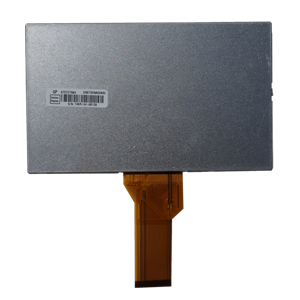

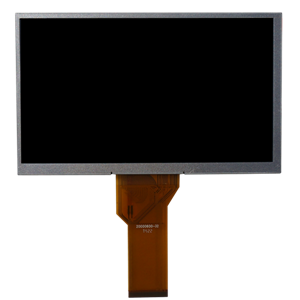

Chimei Innolux TFT LCD display AT070TN94 module parameter:
|
Panel Name: |
AT070TN94 |
|
Touch Panel: |
Optional TP |
|
Screen Size: |
7" inch |
|
Aspect Ratio: |
16:9 |
|
Display Mode: |
Transmissive |
|
Display Resolution: |
800X3(RGB)X480 |
|
PPI ( Pixel per inch ): |
137 |
|

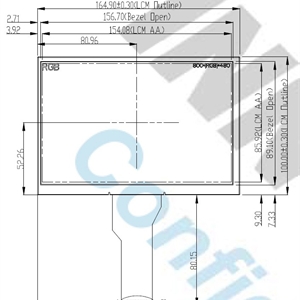

Module/Panel Size(mm): |
164.9 x 100.0 x 5.7 |
|
Active Area(mm): |
154.08 x 85.92 |
|
Dot Pitch(mm): |
0.0642(W) X 0.1790(H) |
|
Surface Treatment: |
Anti-Glare |
|
Viewing Angle (Tpy.)θT/θB/θL/θR: |
50/70/70/70 |
|
Viewing direction: |
6 O'Clock |
|
NTSC: |
50% |
|
Luminance(nits): |
400 |
|
Contrast Ratio: |
500 |
|
Response Time(ms): |
25 |
|
Consumption (W)- Panel: |
0.226 |
|
Consumption (W)- Backlight: |
1.674 |
|
Module Weight (g): |
150.0 |
|
Interface: |
50pin FPC,Parallel 24bit RGB |
|
Operation Temperature( ℃): |
-30~85 |
|
Storage Temperature (℃): |
-30~85 |
|
Lamp Type: |
White LED backlight Display |
Wholesale InnoLux AT070TN94 display TFT-LCD from China
Searching InnoLux AT070TN94 display tft-lcd at a reasonable price? This page includes a rich selection of InnoLux AT070TN94 display tft-lcd! We’ve also got InnoLux AT070TN94 display panel. You can shop wholesale InnoLux AT070TN94 display tft-lcd panel from Chinese InnoLux AT070TN94 display tft-lcd wholesalers with high quality and low prices. Our online wholesalers often offer special discounts and sales like InnoLux AT070TN94 display tft-lcd. If you want quotation or more details, please send Email to:
sales@tekswo-display.com
