G104S1-L01
MOQ: ≥ 10 pcs
Lead Time: 3 working days FCA Hongkong after receiving payment.
Payment: T/T, Paypal, West Union
Warranty: 1 year

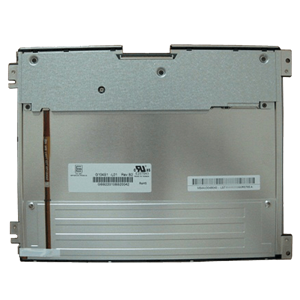

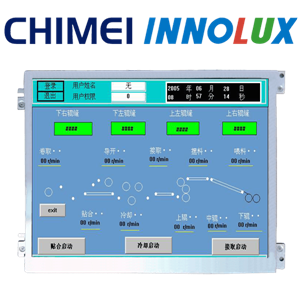

Chimei Innolux TFT LCD panel display G104S1-L01 module parameter:
|
Panel Name: |
G104S1-L01 |
|
Touch screen: |
Optional Touch panel |
|
Screen Size: |
10.4" inch |
|
Aspect Ratio: |
4:3 |
|
Display Mode: |
Transmissive |
|
Display Resolution: |
800×600 |
|
PPI ( Pixel per inch ): |
96 |
|

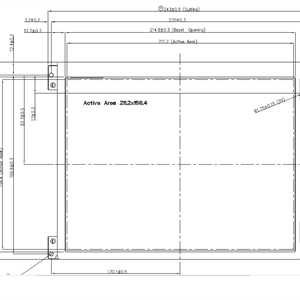

Module/Panel Size(mm): |
243×184×7.3 |
|
Active Area(mm): |
211.2×158.4 |
|
Dot Pitch(mm): |
0.264×0.264 |
|
Surface Treatment: |
Antiglare, Hard coating (3H) |
|
Viewing Angle (Tpy.)θT/θB/θL/θR: |
70/70/80/80 |
|
Viewing direction: |
-- |
|
NTSC: |
-- |
|
Luminance(nits): |
400 |
|
Contrast Ratio: |
700:1 |
|
Response Time(ms): |
5.0/11.0 (Typ.)(Tr/Td) |
|
Consumption (W)- Panel: |
2.0 |
|
Consumption (W)- Backlight: |
3.0/3.6（Typ./Max.） |
|
Module Weight (g): |
355 |
|
Interface: |
20pins,LVDS (1 ch, 6/8-bit) |
|
Operation Temperature( ℃): |
-20~70 |
|
Storage Temperature (℃): |
-40~80 |
|
Lamp Type: |
White LED backlight Display |
|
Applications: |
Industry |
|
Color Depth: |
262K/16.2M (6-bit / 6-bit + FRC) |
|
Backlight Life(Min. Hours): |
30K |
Wholesale InnoLux G104S1-L01 display TFT-LCD from China
Searching InnoLux G104S1-L01 display tft-lcd at a reasonable price? This page includes a rich selection of InnoLux G104S1-L01 display tft-lcd! We’ve also got InnoLux G104S1-L01 display panel. You can shop wholesale InnoLux G104S1-L01 display tft-lcd panel from Chinese InnoLux G104S1-L01 display tft-lcd wholesalers with high quality and low prices. Our online wholesalers often offer special discounts and sales like InnoLux G104S1-L01 display tft-lcd. If you want quotation or more details, please send Email to:
sales@tekswo-display.com
