EJ070NA-01K
MOQ: ≥ 10pcs
Lead Time: 3 working days FCA Hongkong after receiving PO
Payment: T/T, Paypal, West Union
Warranty: 1year
Lead Time: 3 working days FCA Hongkong after receiving PO
Payment: T/T, Paypal, West Union
Warranty: 1year

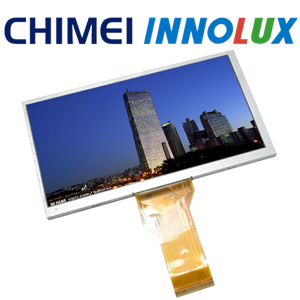

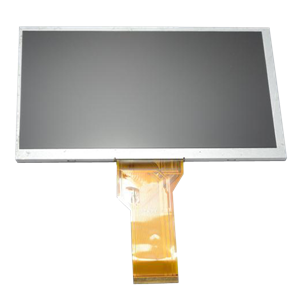

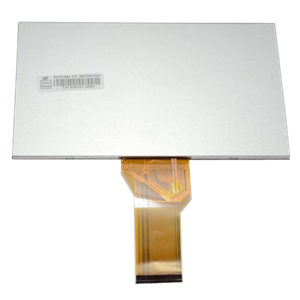

Chi mei InnoLux TFT LCD panel display EJ070NA-01K module parameter:
|
Product Name: |
EJ070NA-01K |
|
Touch Panel: |
Optional |
|
Screen Size: |
7.0" |
|
Aspect Ratio: |
16:9 |
|
Display Mode: |
Transmissive |
|
Resolution: |
800X3(RGB)X480 |
|
PPI ( Pixel per inch ): |
134 |
|
Module/Panel Size(mm): |
164.9 x 100.0 x 3.35 |
|
Active Area(mm): |
154.08 x 85.92 |
|
Dot Pitch(mm): |
- |
|
Surface Treatment: |
Anti-Glare |
|
Viewing Angle (Tpy.)θT/θB/θL/θR: |
50/70/70/70 |
|
Viewing direction: |
6 O'Clock |
|
NTSC: |
50% |
|
Luminance(nits): |
400 |
|
Contrast Ratio: |
500:1 |
|
Response Time(ms): |
10/15 (Typ.)(Tr/Td) |
|
Consumption (W)- Total: |
1.9 |
|
Color Depth: |
262K/16.7M |
|
Weight (g): |
117.0 |
|
Interface: |
50pin FPC Parallel RGB(1 ch,6/8-bit) |
|
Operation Temperature( ℃): |
-30~85 |
|
Storage Temperature (℃): |
-30~85 |
|
Lamp Type: |
White LED backlight Display |
Wholesale InnoLux EJ070NA-01K display TFT-LCD from China
Searching InnoLux EJ070NA-01K display tft-lcd at a reasonable price? This page includes a rich selection of InnoLux EJ070NA-01K display tft-lcd! We’ve also got InnoLux EJ070NA-01K display panel. You can shop wholesale InnoLux EJ070NA-01K display tft-lcd panel from Chinese InnoLux EJ070NA-01K display tft-lcd wholesalers with high quality and low prices. Our online wholesalers often offer special discounts and sales like InnoLux EJ070NA-01K display tft-lcd. If you want quotation or more details, please send Email to:
