HJ101NA-02C
MOQ: ≥ 10pcs
Lead Time: 3 working days FCA Hongkong after receiving PO
Payment: T/T, Paypal, West Union
Warranty: 1year
Lead Time: 3 working days FCA Hongkong after receiving PO
Payment: T/T, Paypal, West Union
Warranty: 1year

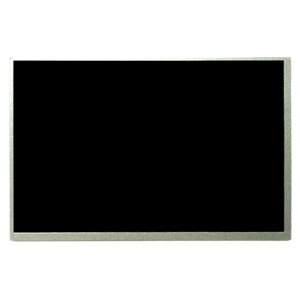

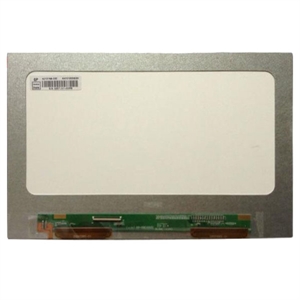

Chi mei InnoLux TFT LCD panel display HJ101NA-02C module parameter:
|
Product Name: |
HJ101NA-02C |
|
Touch Panel: |
Optional |
|
Screen Size: |
10.1" |
|
Aspect Ratio: |
16:10 |
|
Display Mode: |
Transmissive |
|
Resolution: |
1028X3(RGB)X800 |
|
PPI ( Pixel per inch ): |
149 |
|

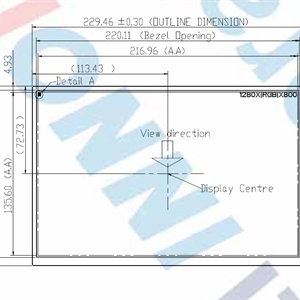

Module/Panel Size(mm): |
229.46 x 149.1 x 3.4 |
|
Active Area(mm): |
216.96 x 135.60 |
|
Dot Pitch(mm): |
- |
|
Surface Treatment: |
Glare |
|
Viewing Angle (Tpy.)θT/θB/θL/θR: |
75/75/75/75 |
|
Viewing direction: |
12 O'Clock |
|
NTSC: |
-- |
|
Luminance(nits): |
250 |
|
Contrast Ratio: |
700:1 |
|
Response Time(ms): |
10/15 (Typ.)(Tr/Td) |
|
Consumption (W)- Total: |
3.22 |
|
Color Depth: |
262K/16.7M |
|
Weight (g): |
207.0 |
|
Interface: |
40pin Connector LVDS (1 ch, 6/8-bit) |
|
Operation Temperature( ℃): |
-0~50 |
|
Storage Temperature (℃): |
-20~60 |
|
Lamp Type: |
White LED backlight Display |
Wholesale InnoLux HJ101NA-02C display TFT-LCD from China
Searching InnoLux HJ101NA-02C display tft-lcd at a reasonable price? This page includes a rich selection of InnoLux HJ101NA-02C display tft-lcd! We’ve also got InnoLux HJ101NA-02C display panel. You can shop wholesale InnoLux HJ101NA-02C display tft-lcd panel from Chinese InnoLux HJ101NA-02C display tft-lcd wholesalers with high quality and low prices. Our online wholesalers often offer special discounts and sales like InnoLux HJ101NA-02C display tft-lcd. If you want quotation or more details, please send Email to:
