AT102TN03 V.8
MOQ: ≥ 10pcs
Lead Time: 3 working days FCA Hongkong after receiving PO
Payment: T/T, Paypal, West Union
Warranty: 1year
Lead Time: 3 working days FCA Hongkong after receiving PO
Payment: T/T, Paypal, West Union
Warranty: 1year
|
Product Name: |
AT102TN03 V.8 |
|
Touch Panel: |
No |
|
Screen Size: |
10.2” |
|
Aspect Ratio: |
15:9 |
|
Display Mode: |
Transmissive |
|
Resolution: |
800 X 3(RGB) X 480 |
|
PPI ( Pixel per inch ): |
92 |
|

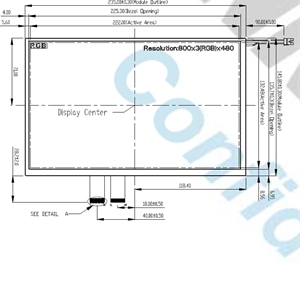

Module/Panel Size(mm): |
235.0 X145.8 X6.1 |
|
Active Area(mm): |
222.0 X 132.48 |
|
Dot Pitch(mm): |
0.0925(W) X 0.276(H) |
|
Surface Treatment: |
Anti-Glare |
|
Viewing Angle (Tpy.)θT/θB/θL/θR: |
45/65/65/65 |
|
Viewing direction: |
6 O'Clock |
|
NTSC: |
50% |
|
Luminance(nits): |
350 |
|
Contrast Ratio: |
300 |
|
Response Time(ms): |
35 |
|
Consumption (W)- Panel: |
0.250 |
|
Consumption (W)- Backlight: |
1.860 |
|
Weight (g): |
332.0 |
|
Interface: |
60pin FPC,Parallel 18bit RGB |
|
Operation Temperature( ℃): |
-30~85 |
|
Storage Temperature (℃): |
-30~85 |
|
Lamp Type: |
White LED backlight display |
Wholesale InnoLux AT102TN03 V.8 display TFT-LCD from China
Searching InnoLux AT102TN03 V.8 display tft-lcd at a reasonable price? This page includes a rich selection of InnoLux AT102TN03 V.8 display tft-lcd! We’ve also got InnoLux AT102TN03 V.8 display panel. You can shop wholesale InnoLux AT102TN03 V.8 display tft-lcd panel from Chinese InnoLux AT102TN03 V.8 display tft-lcd wholesalers with high quality and low prices. Our online wholesalers often offer special discounts and sales like InnoLux AT102TN03 V.8 display tft-lcd. If you want quotation or more details, please send Email to:
