12.1" TFT LCD Display

G121X1-L04

  • Download
  • back
MOQ: ≥ 10pcs
Lead Time: 3 working days FCA Hongkong after receiving PO
Payment: T/T, Paypal, West Union
Warranty: 1year

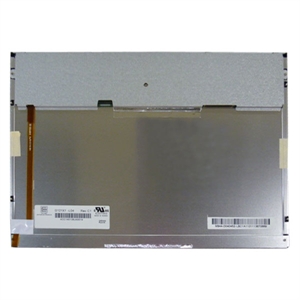

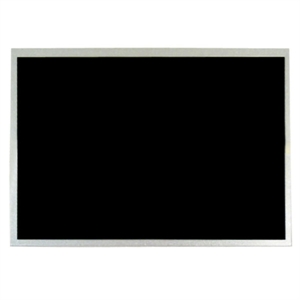

Chi mei InnoLux TFT LCD panel display G121X1-L04 module parameter:

Product Name:
G121X1-L04
Touch Panel:
Optional
Screen Size:
12.1"
Aspect Ratio:
4:3
Display Mode:
Transmissive
Resolution:
1024X3(RGB)X768
PPI ( Pixel per inch ):
105
Module/Panel Size(mm):
260.5*204.0*7.2
Active Area(mm):
245.76*184.32
Dot Pitch(mm):
-
Surface Treatment:
Antiglare
Viewing Angle (Tpy.)θT/θB/θL/θR:
70/70/80/80
Viewing direction:
--
NTSC:
--
Luminance(nits):
500
Contrast Ratio:
700:1
Response Time(ms):
5/11 (Typ.)(Tr/Td)
Consumption (W)- Total:
6.6
Color Depth:
262K/16.2M
Weight (g):
435.0
Interface:
20pin Connector LVDS (1 ch, 6/8-bit)
Operation Temperature( ℃):
-30~70
Storage Temperature (℃):
-40~80
Lamp Type:
White LED backlight Display

Wholesale InnoLux G121X1-L04 display TFT-LCD from China

       Searching InnoLux G121X1-L04 display tft-lcd at a reasonable price? This page includes a rich selection of InnoLux G121X1-L04 display tft-lcd! We’ve also got InnoLux G121X1-L04 display panel. You can shop wholesale InnoLux G121X1-L04 display tft-lcd panel from Chinese InnoLux G121X1-L04 display tft-lcd wholesalers with high quality and low prices. Our online wholesalers often offer special discounts and sales like InnoLux G121X1-L04 display tft-lcd. If you want quotation or more details, please send Email to:
