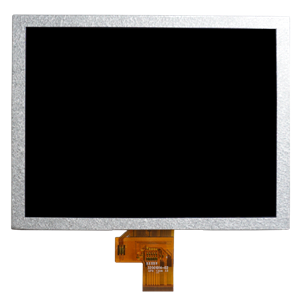

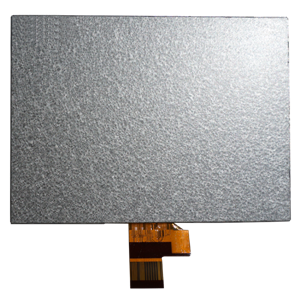

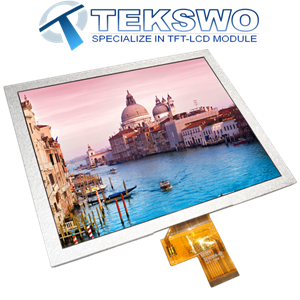

8.0" TFT Display

TSW080TN01-40NM01

  • Download
  • back

Product Name:
TSW080TN01-40NM01
Touch Panel:
No
Glass Supplier:
CHIMEI-INNOLUX
Screen Size:
8"

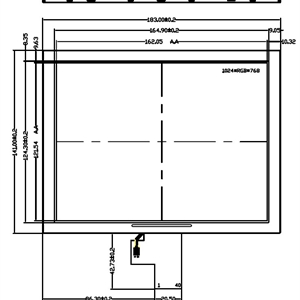

Module/Panel Size(mm):
183*141*3.5
Active Area(mm):
162.048*121.536
Resolution:
1024 X 3(RGB) X 768
Viewing Angle (Tpy.)θT/θB/θL/θR:
50/70/70/70
Viewing direction:
6 O'Clock
Aspect Ratio:
4:3
Luminance(nits):
250
Contrast Ratio:
700
Pixel Pitch(mm):
0.158(W) × 0.158(H)
Power Consumption (W):
2.5
Weight (g):
NA
Interface:
40pin FPC(LVDS)
Operation Temperature( ℃):
-10~50
Storage Temperature (℃):
-20~60
HTHH.(op):
60℃,90% RH
Remark:
