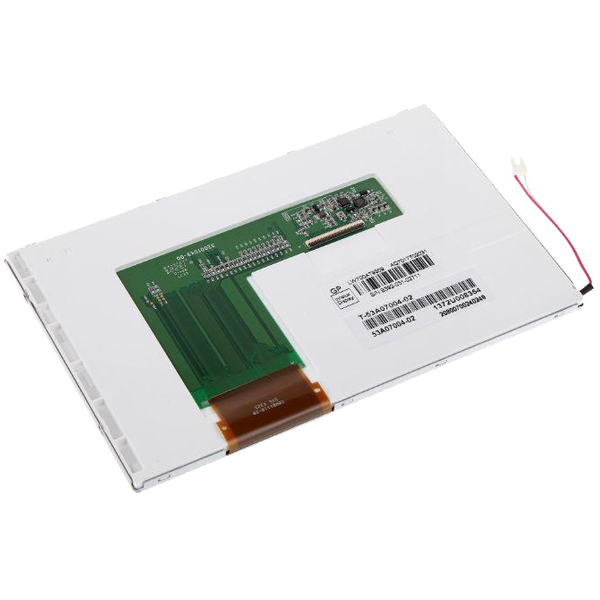

TEKSWO China is first-class Chimei Innolux distributor, supplying LW700AT9309 TFT LCD display with A grade and aggressive price.
Free Inquiry by Email: sales@tekswo-display.com
-Please see more Innolux TFT LCD displays on sale
Panel Name:
LW700AT9309
Touch screen:
Optional Touch panel
Screen Size:
7.0" inch
Aspect Ratio:
15:9
Display Mode:
Transmissive
Display Resolution:
800x480
PPI ( Pixel per inch ):
133
Module/Panel Size(mm):
165.0 x 104.44 x 5.36/5.9(Typ./Max.)
Active Area(mm):
152.40 x 91.44
Dot Pitch(mm):
0.0635 x 0.1905
Surface Treatment:
Anti-Glare
Viewing Angle (Tpy.)θT/θB/θL/θR:
60/70/70/70
Viewing direction:
6 O'Clock
NTSC:
45%
Luminance(nits):
350
Contrast Ratio:
400:1
Response Time(ms):
5/11 (Typ.)(Tr/Td)
Consumption (W)- Panel:
TBD
Consumption (W)- Backlight:
TBD
Module Weight (g):
125.0
Interface:
40pin TTL (1 ch, 6-bit)
Operation Temperature( ℃):
-20~70
Storage Temperature (℃):
-30~80
Lamp Type:
White LED / WLED
LW700AT9309 is mainly applied for portable DVD, digital photo frame etc.
